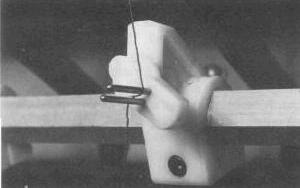

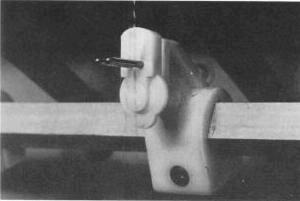

24 The first illustration (a) shows the device in its normal spinning position, with the yarn being produced passing between the protruding fingers. The section containing the fingers is pivoted and sits in a slight well. When one strand breaks, the movement of the second strand to the site as it realigns with the spindle topples the 'fingered section' out of the well and over (b), so that the single strand remaining then has to pass through a zig0zag path around the fingers, as shown in the bottom illustration. This quickly prevents twist from rising up the strand from the spindle, cohesion between the fibres is reduced drastically, and the strand breaks out.

  Figure 24

[Return to Text]

  Figure 24

[Return to Text]
